1.0 Purpose

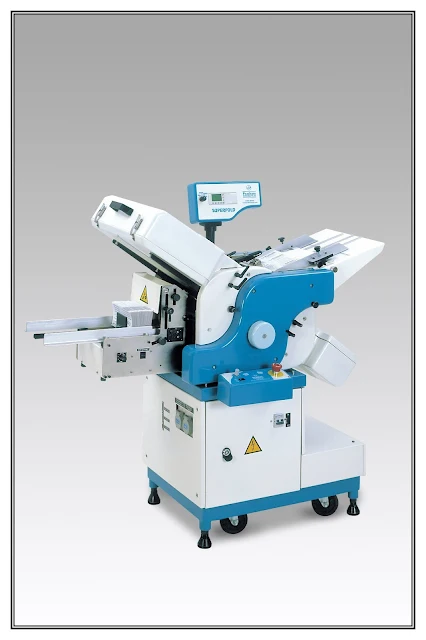

1.1 To provide standard guidelines for handling / executing the operating of Super Folding Machine.
2.0 Scope
2.1 This procedure is applicable for operation of Super Folding Machine at “NAME” Pharmaceuticals Ltd.
3.0 Responsibility
3.1. Only concern operator is responsible for normal operation. He/ She inform the supervisor about any deviation from normal operation. He also maintains logbook.
3.2. Sr. Officer- Production/Officer- Production is responsible for monitoring day to day activity.
3.3 Production and Quality Assurance Officer shall ensure that the procedure is implemented properly.
4.0 Abbreviations and Definitions
4.1 SOP : Standard Operating Procedure
4.2 ENGG. : Engineering
4.3
SS :
Stainless Steel
5.0 Materials and Equipment
5.1 None
6.0 Precaution / Health and Safety Considerations
6.1
Have to plan the work
carefully before starting the operation, keep the floor clean near machine.
6.2
During the maintenance,
Servicing and cleaning always press emergency stop.
6.3
Never try to clean while the
machine is in running.
7.0 Procedure
7.1 General instructions
7.1.1 Clean
the machine carefully.
7.1.2 The safety devices should not be removed in any operation case.
Before opening electrical control panel always ensure the main plug is disconnected.
7.1.3 Avoid
insertion of hands in this area while drive of the machine is on.
7.1.4 During
the machine setting operation, operator is directly exposed to the rotating
folding rollers.
7.1.5 Clean
connection & fittings at beginning of machine running.
7.1.6 Check
the protective facilities after every day production work.
7.1.7 Set
the folding plate or pocket as your production schedule.
7.1.8 Set
the feed papers to the machine one by one.
7.1.8 Ensure
smooth feeding of paper of various types and thicknesses
7.2 Safe equipment & other factors need to consider
7.2.1 Equipment
must be made safe before operating starts.
7.2.2 Set
up position people at key points if they are needed to keep other people out of
place.
7.2.3 Don’t
just focus on the safety of Machine operating – Take the necessary precautions
to ensure the safety of others who may be affected by their work.
7.2.4 The
folder paper can be creased to help in right angle folding.
7.2.5 Set
the creasing line in used as a guideline.
7.2.6 Gap
between the rollers is adjusted according to the paper thickness. Folding
pockets are used to set the
fold length. Gap setting roller is a fixed roller.
7.2.7 To
ensure vibration free operation of machine.
7.2.8 Level
the machine by adjusting four pads properly.
7.3 Other factors need to consider
7.3.1 After
locking the folding pocket ensure the freeness of machine by rotating the
machine with hand wheel to ensure
that the folding tray not touching the rubber roller.
7.3.2 So
that avoid the damage to the rubber roller.
7.3.3 Move
stacker wheels run on belt only.
7.3.4 Always
ensure stacker wheels run on belt only.
7.3.5 Rotate
the swivelling bar to adjust the gap. Another system to gap setting is when you
rotate the knob anti clockwise, gap
reduces and when you rotate is a clock wise gap increase.
7.3.6 Set
the programming panel.
7.3.7 After all setting have been done, put the
machine in “RUN” mode
7.4 Procedure
7.4.1 Check the zero-gap setting.
7.4.2 Check the paper depositions on the rubber
rollers, feeder rollers resulting in poor quality folding.
7.4.3 Clean the roller regularly.
7.4.4 As the machine takes speed, start feeding
the paper by “FEED ON” switch.
7.4.5 For stopping the machine first stop the
Feed and put the drive “OFF”. Then Off the main isolator Switch.
7.4.6 Every time insert a folding pocket or
deflector ensure free running of machine by turning hand wheel.
7.4.7 Auto mode use for multiple batches. Single
mode use for single batch.
7.4.8 Reset for current count, Batch Count and
total count.
7.4.9 Clean
the machine after operation.
7.4.10 Cover the machine to protect the dust.
8.0 Reference Document
8.1 In-house
9.0 Annexure
9.1 Annexure- I : Format of Machine Log Book
10.0 Revision History
|
Revision
No. |
Brief reason for the revision |
Effective Date |
Remarks |
|
01 |
New |
|
|
|
|
|
|
|
11.0 Training
11.1 Head
of Production or his nominee give the training of production operator and
worker.
